FQD-A9600

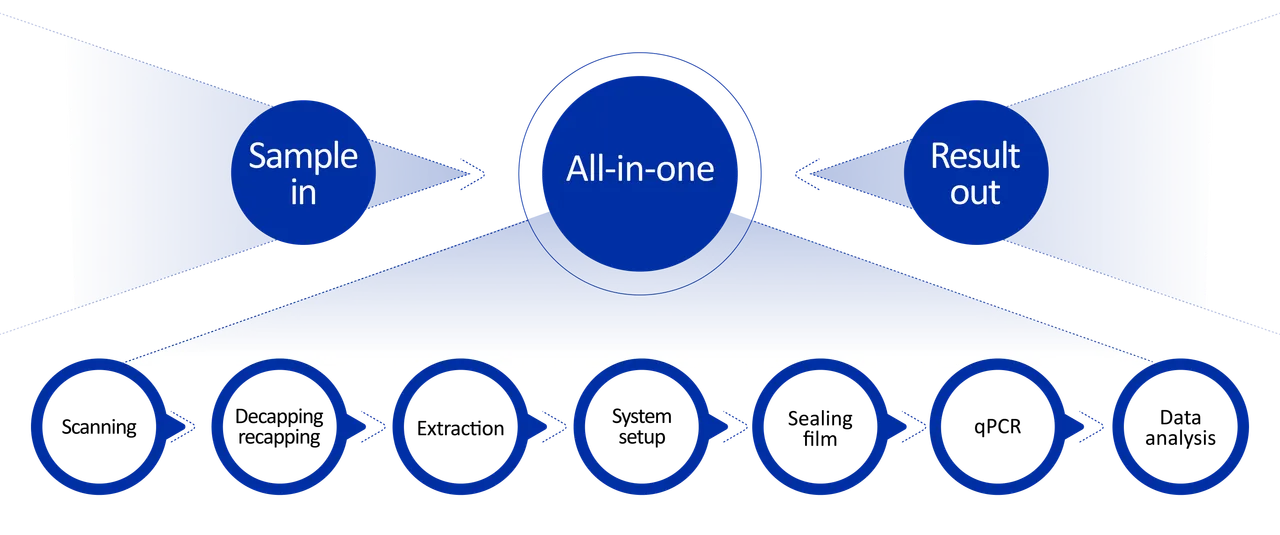

The AutoGene 9600 Automatic PCR Analysis System is an all-in-one platform that enables true sample-in, result-out automation. This fully integrated system automatesevery step-from decapping and nucleic acid extraction to PCR setup, sealing, qPCR, and data analysis. With a broad assay menu and minimal hands-on time, it streamlines molecular testing and life science workflows for maximum efficiency.
Details
Product Description
Product Features
Full-automation: Sample in, result out. Free your hands, improve experimental efficiency.
High Throughput: A Stream-lined Procedure for sample detection, more than 2200 samples can be processed within 24 hours.
Safe and Non-contamination: Three independent zones, gradient negative pressure, ultraviolet lamp、HEPA filtration and other comprehensive anti-contamination measures.
Efficient and Accurate: 2 hours for 1st run, 1 hour since 2nd run.
Application Field
Specification
| Product Model | FQD-A9600(EA4), FQD-A9600(EA5), FQD-A9600(EA6) |
|---|---|
| Throughtput | 1-96 |
| Detection Channel | 4/5/6 |
| Detection Efficiency | ≥ 2200 in 24 hours |
| Nucleic Acid Purification Volume | 20-1000μL |
| Magnetic Beads Recovery Rate | ≥99% |
| Nucleic Acid Purification Temperature range | 4-100℃ |
| Number of Pipettes | 2 |
| PCR Volume | 5-100μL |
| PCR Temperature Range | 4-105℃ |
| PCR Precision | ≤±0.1 |
| PCR Ramp Rate | ≥6℃/s |
| Dimension | 1950mm*770mm*1615mm (length, width, height) |
| Data Analysis | Export to CSV、Excel、txt or equivalent format |
| LIS interface | Bidirectional LIS communication |
| Liquid Level Detection | Capacitance and pressure sensing technology |
| Certificate | CE-IVDR |
