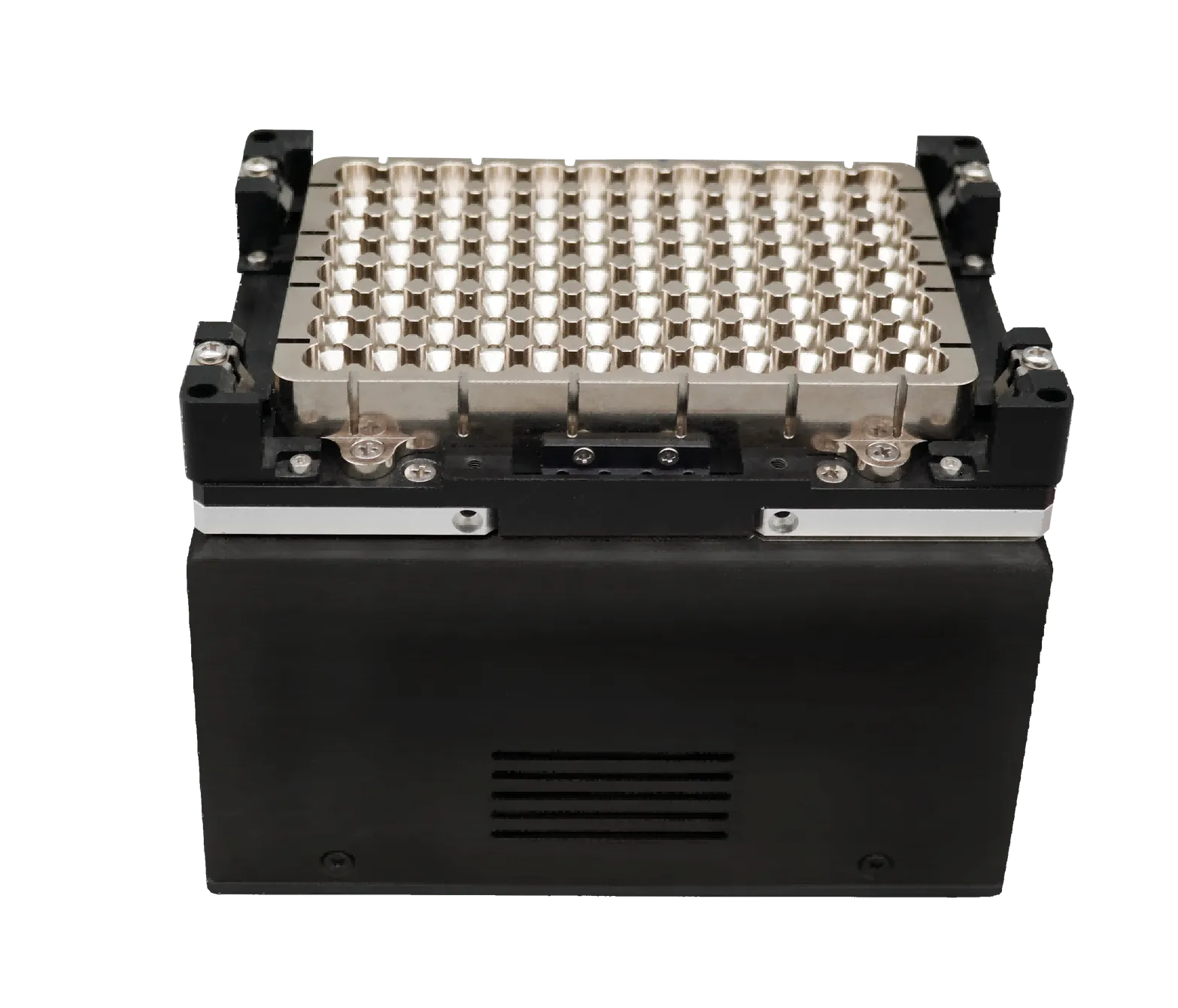

Heating & Mixing Module

Product Description

The primary utilization of this technology is in NGS library construction workstations and biopharma ceutical liquid handling workstations. It serves to fulfill the requirements of liquid sample oscillation, mixing, heating incubation within the automated workstation workflow.

Product Features

• Compact Design: The product's size occupies only one standard SBS plate position, making it easy to integrate into workstation platforms.

• Integrated Design: No external controller is required; it operates with standard 24V power.

• Communication Interfaces: It offers standard RS485 and CAN communication interfaces, allowing for flexible configuration.

• Multiple Adapter Modules: Users can choose from a variety of options, including standard 96-well PCR microplates, deep-well plates, flat plates, and even custom configurations if needed.

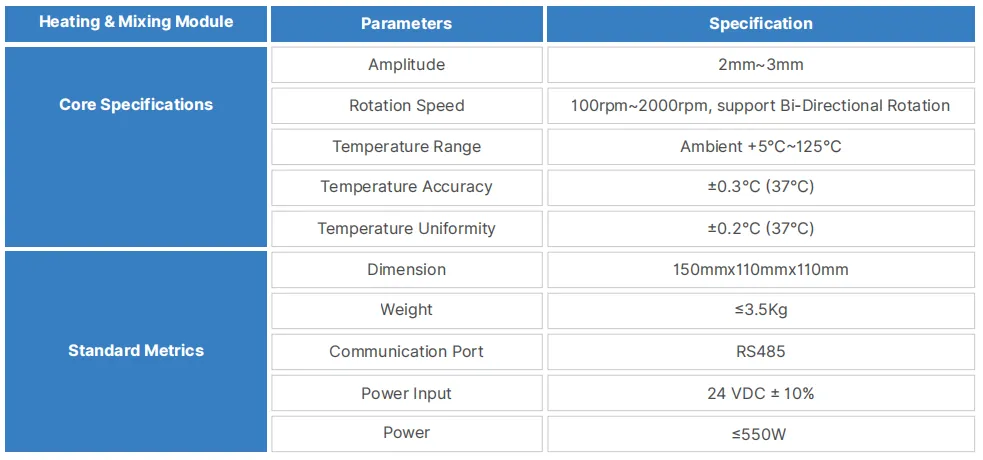

Specification
