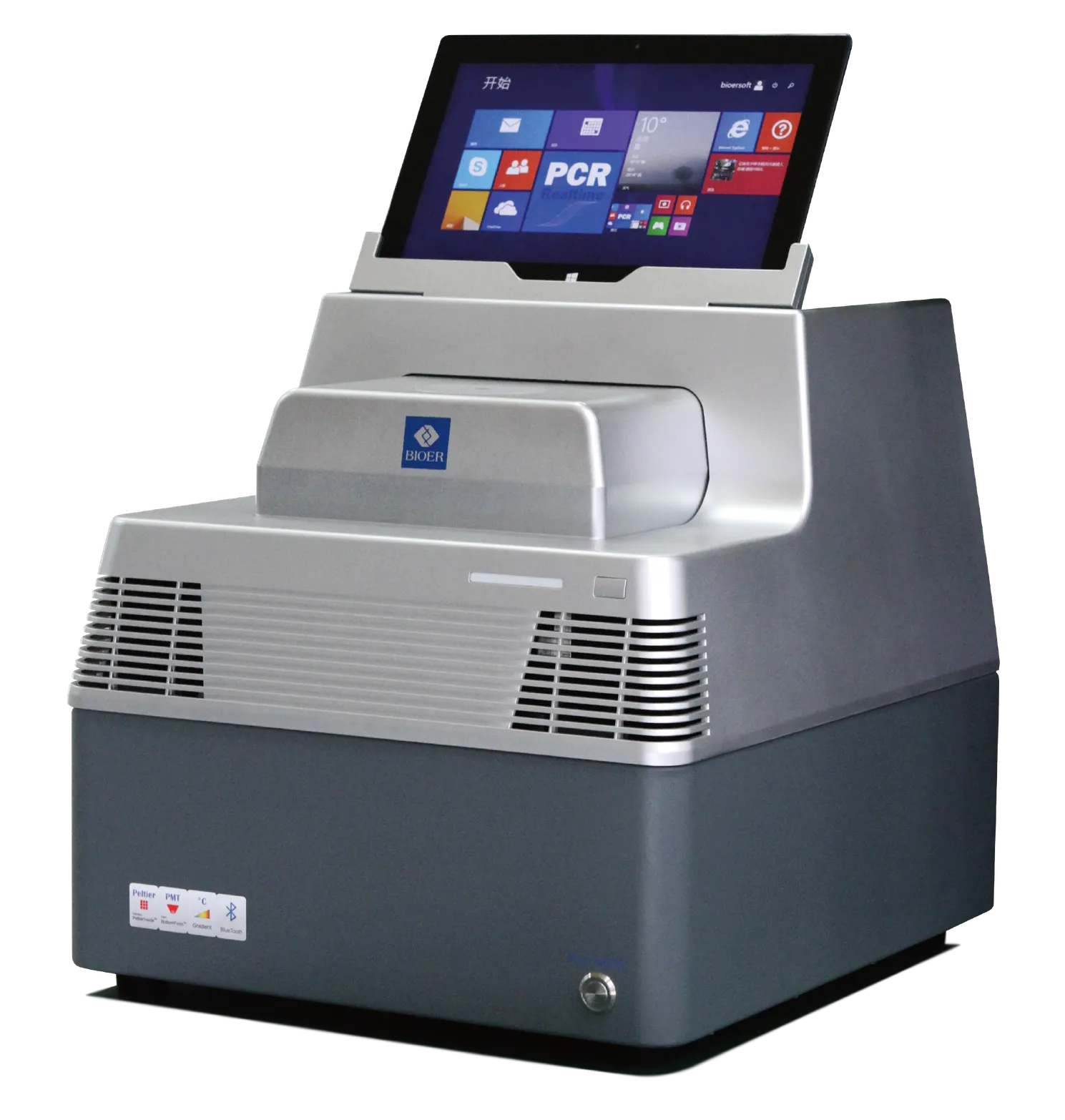

LineGene 9600 Plus
As a classic product of Bioer Technology, the LineGene 9600 Plus Real-Time PCR System combines advanced temperature control, precision optics, and patented bottom detection technology for fast, accurate, and stable performance. It supports a wide range of applications, including absolute and multiplex quantification, qualitative analysis, SNP analysis, melt curve analysis, and HRM analysis.
Details
Product Description
Fluorescence quantification is a powerful technique used in molecular biology to measure the amount of fluorescent signal emitted from a sample. It relies on the ability of certain molecules, such as fluorescent dyes or fluorescently labeled probes, to emit light of specific wavelengths when excited by a light source. This method enables the precise quantification of nucleic acids, proteins, and other biomolecules in a sample based on the intensity of fluorescence emitted.
Product Features
- Unique bottom scanning, excellent signal-to-noise ratio, high sensitivity, enabling trace detection.
- Equipped with 6 long-life LED excitation light sources, maintenance-free, with no cross-interference between channels.
- Professional optical fiber transmission, eliminating edge path differences, calibration-free.
- Ultra-high sensitivity PMT detector, coupled with a precise optical path system, achieving more accurate detection.
Application Field
Gene Expression Analysis
Pathogen Detection
Genetic Testing
Environmental Monitoring
Food Safety
Specification
| Product Module | FQD-96A (EA2)/FQD-96A (EA4)/FQD-96A (EA5)/FQD-96A (EA6) |
|---|---|
| Sample Throughput | 1-96 |
| Applicable Consumables | 0.2mL 96-Well PCR Plate, 0.2mL PCR Tube, 0.2mL PCR 8-strip Tube |
| Detection Channel | 2/4/5/6, Multiple Channels Optional |
| Wavelength | Excitation Wavelength: 300-800nm; Emission Wavelength: 500-800nm |
| Maximum Ramping Rate | 4℃/s |
| Temperature Accuracy | ≤±0.2℃ |
| Temperature Uniformity | ≤±0.4℃ |
| Gradient Capability | yes, 12-column temperature gradient (1–36°C) |
| Power Input | AC, 100-240V, 50/60HZ, 650W |
| Dimension | 410 mm×386 mm×352 mm (L×W×H) |
| Certificate | CE-IVDR |
Related Products
You May Also Like

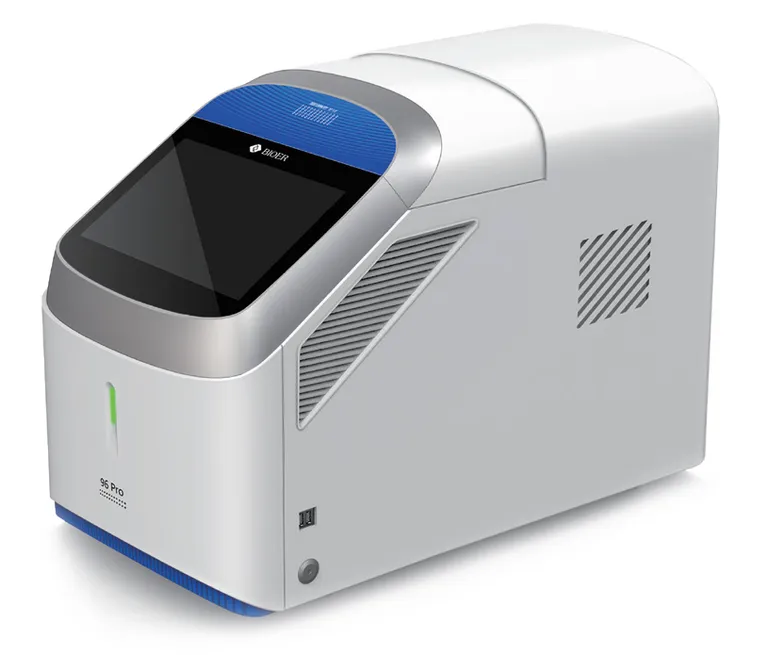

LineGene 9600 Pro
This product is an improved and upgraded version based on the original LineGene 9600 Plus (FQD-96A) instrument. It continues to employ the bottom scanning method, effectively enhancing detection sensitivity. It utilizes a spatial optical path with six channels for simultaneous scanning, requiring only 7 seconds for all six channels, significantly saving operational time. Furthermore, the optical signal reception now employs PD (Photodiode) instead of PMT (Photomultiplier Tube).

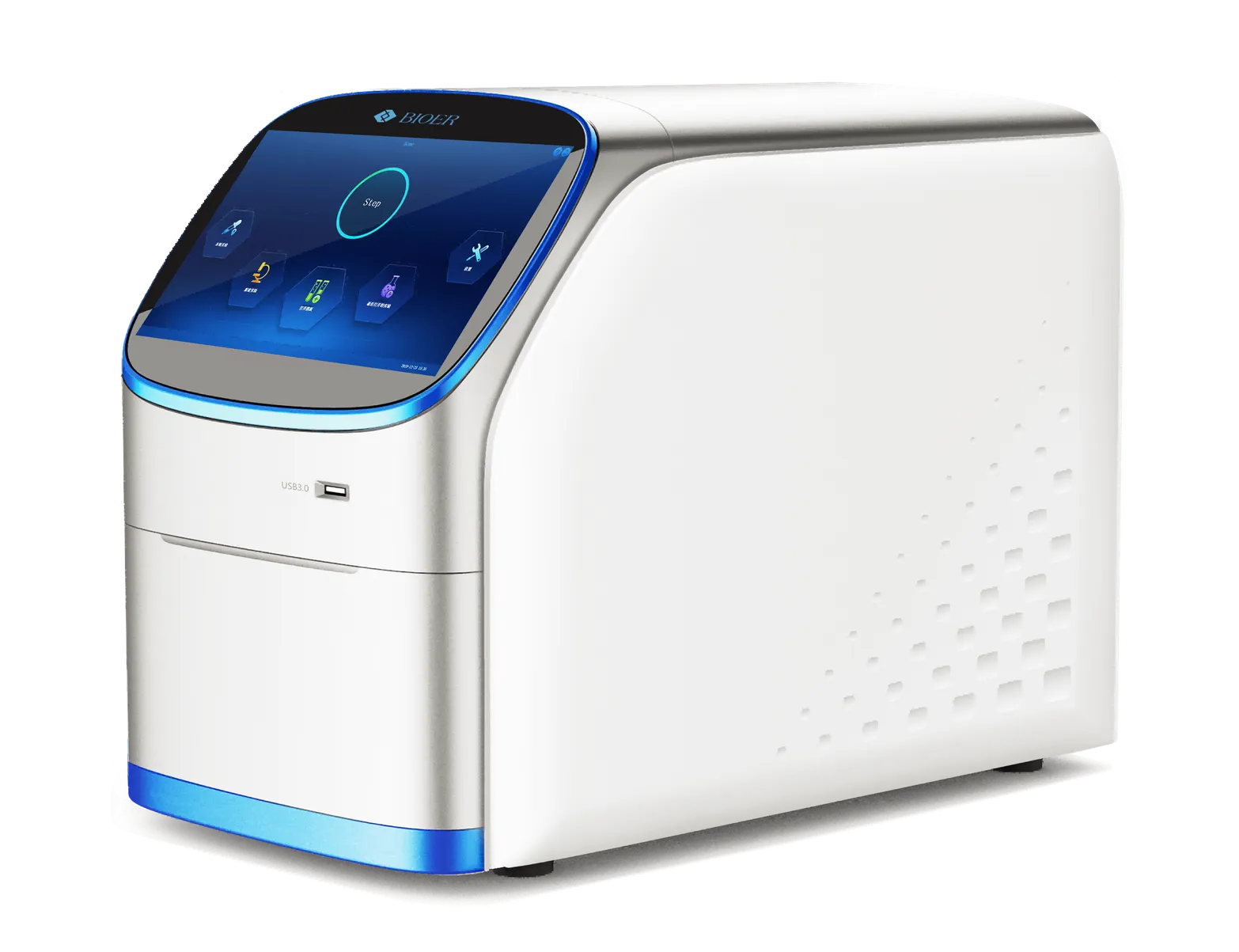

QuantGene 9600
QuantGene 9600 adopts the extremely mature thermoelectric refrigeration technology of Bioer Technology, equipped with a new light source and light path design, using a unique constant current power supply and 6 zone independent temperature control mode, on the basis of accurate and rapid fluorescence quantitative analysis, taking into account more user needs. The products cover quantitative/qualitative analysis, SNP analysis, melt curve analysis, HRM analysis, multiple gene detection and many other analysis, which fully meet the detection needs of scientific research, clinical and other users.

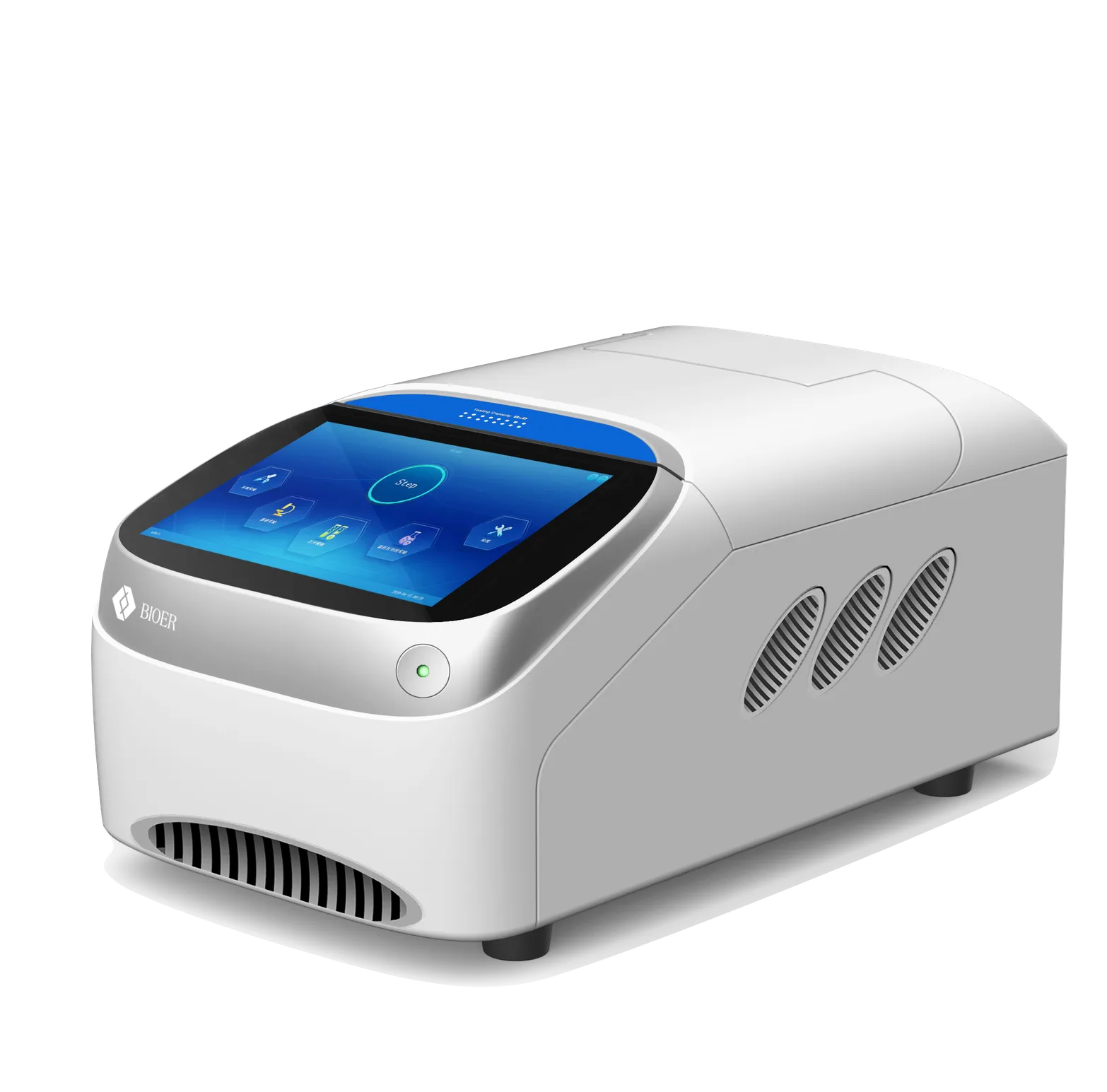

LineGene Mini S
